Output Graphics Guide (Vixi Live)

This is a guide for Vixi Live output settings. Click here to view this page in a web browser.

Setup and Launch an Output Link

1. From the main menu, select Settings

2. Then select Edit Output Graphics

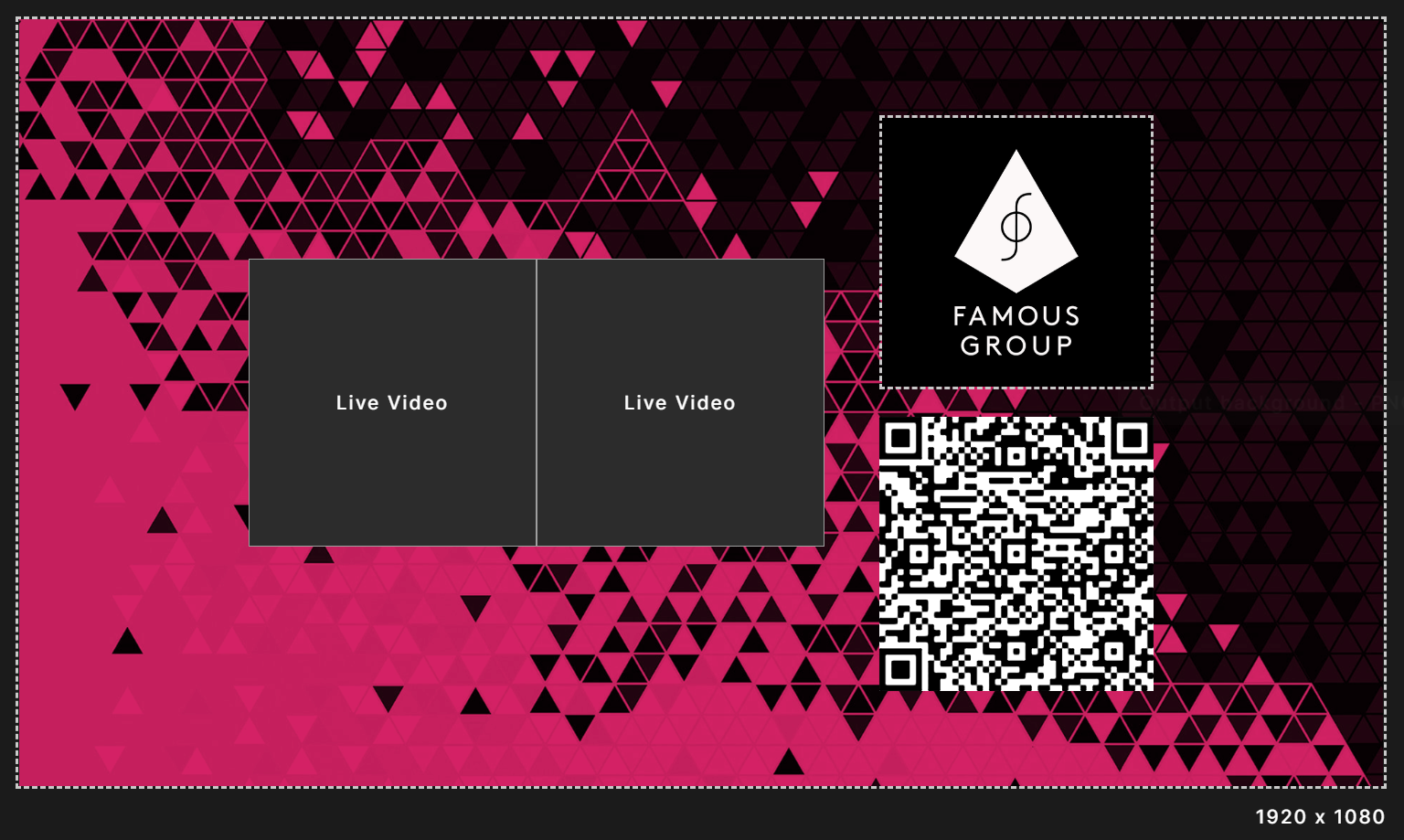

3. On this screen, you can edit the Output settings to configure the page just how you want it

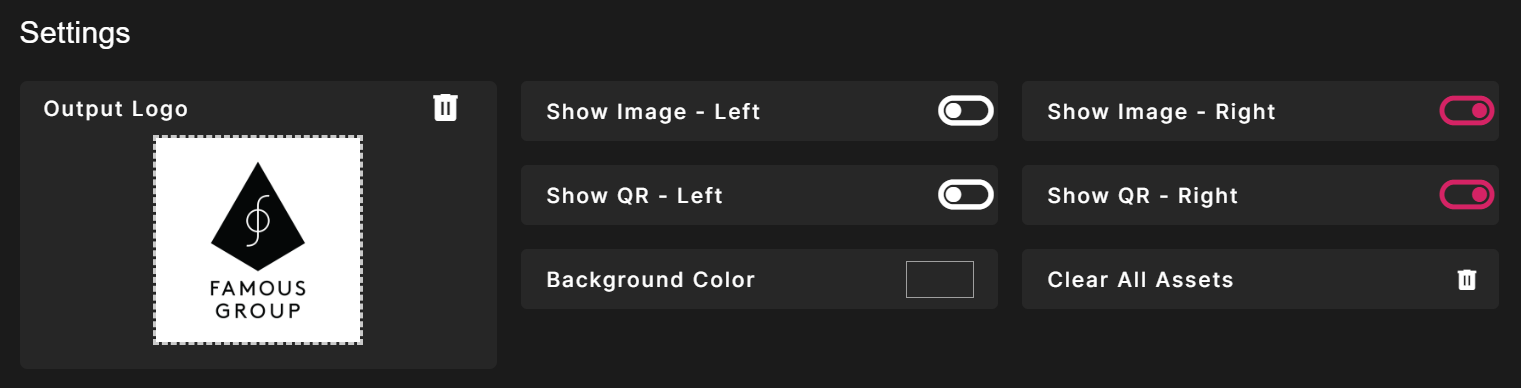

This is a description of all options available on this page:

Output Logo: You can upload a logo here that will be used in the worst-case scenario where a fan closes their camera app while Live on the board. When a Live fan closes their phone, the output will be solid black until the next fan is highlighted. But if a Logo is uploaded, the Logo will be used in place of a blank/black output.

Show Image Left/Right: This allows you to enable or disable the additional images on the sides of the output. These would typically be a team or sponsor logo. After you toggle these on, you can click the blank square in the preview to upload a team logo to that location.

Show QR Left/Right: This allows you to display the QR Code to either the left or right (or both) sides of the output.

Background Color: This allows you to pick a color to use as the background. Note that you can also upload a background image, see below.

Background Image: If you click the background area in the preview, you can upload a background image.

4. Once you're finished configuring your output page, you can click Save and Exit at the top left.

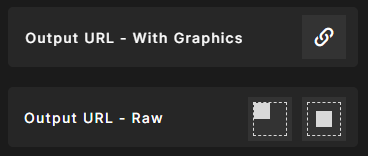

5. After Saving, you should be on the Settings menu. From here, open the Output by selecting either:
         a. Output URL - With Graphics (uses the config you created above)
         b. Output URL - Raw (uses only the video feed with no additional graphics)

If you click the option "With Graphics", you'll see the Output configuration that you created at the beginning of this guide. This is the recommended option.

If you click "Raw", it will open a URL with only the Video Feed and no additional graphics. This is used when you want to create your own background with other programs such as OBS. Note that when using Raw, you can choose to open the feed in the middle of the screen or in the top left - depending on which button you click.
